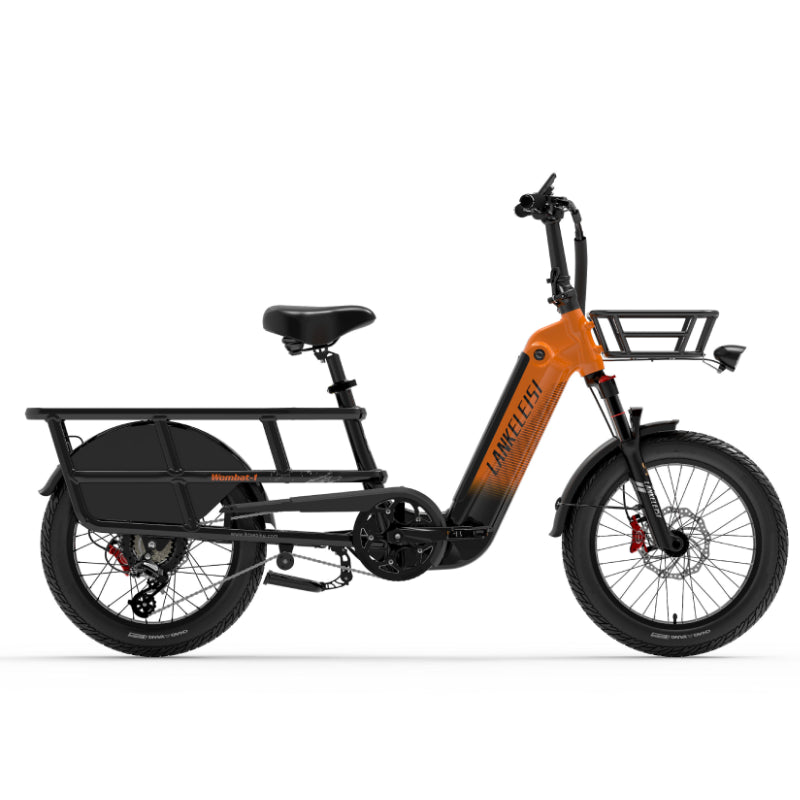

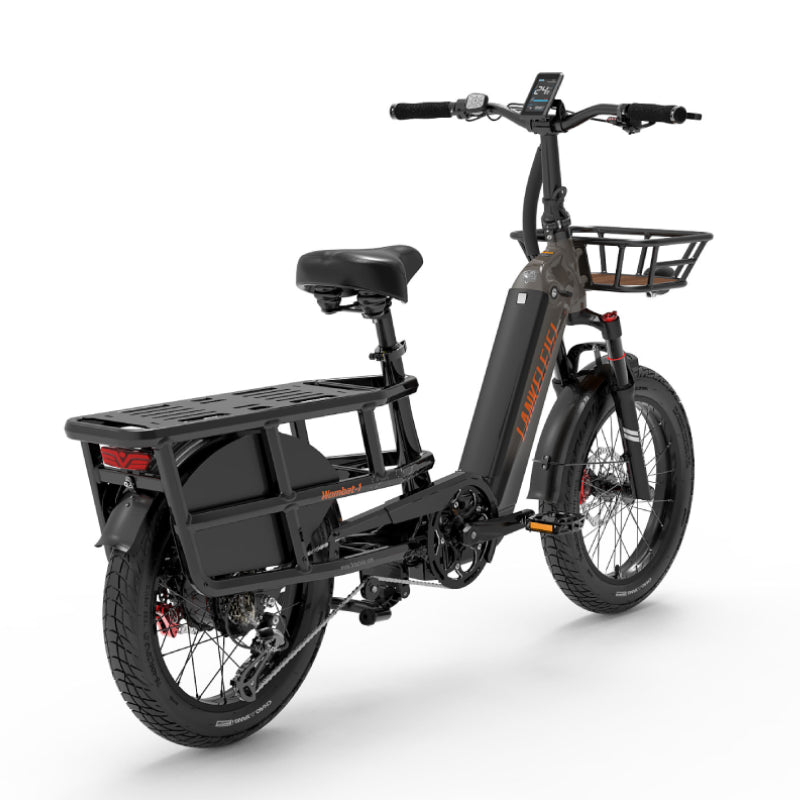

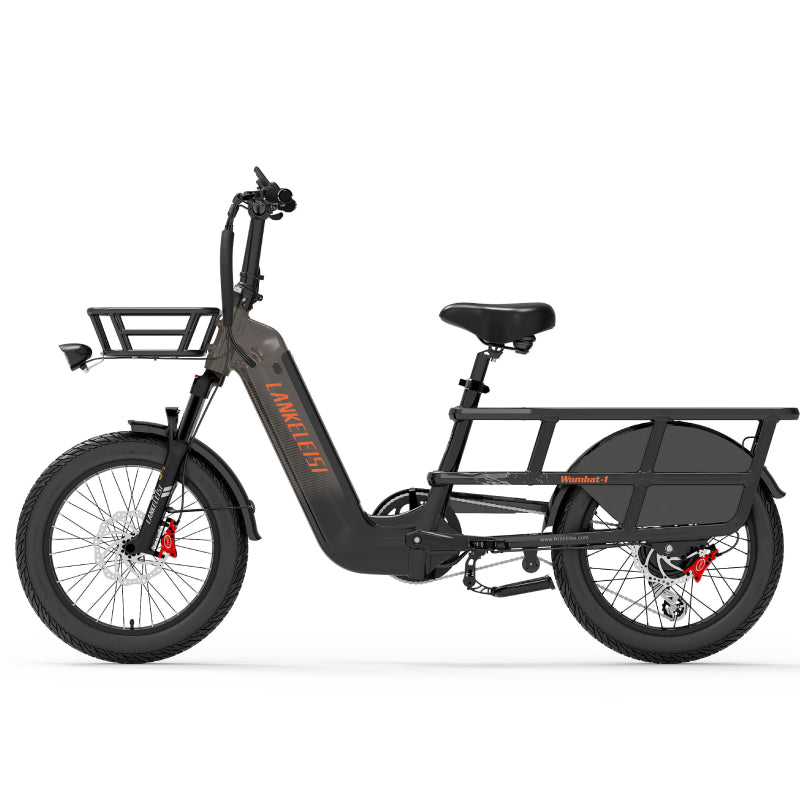

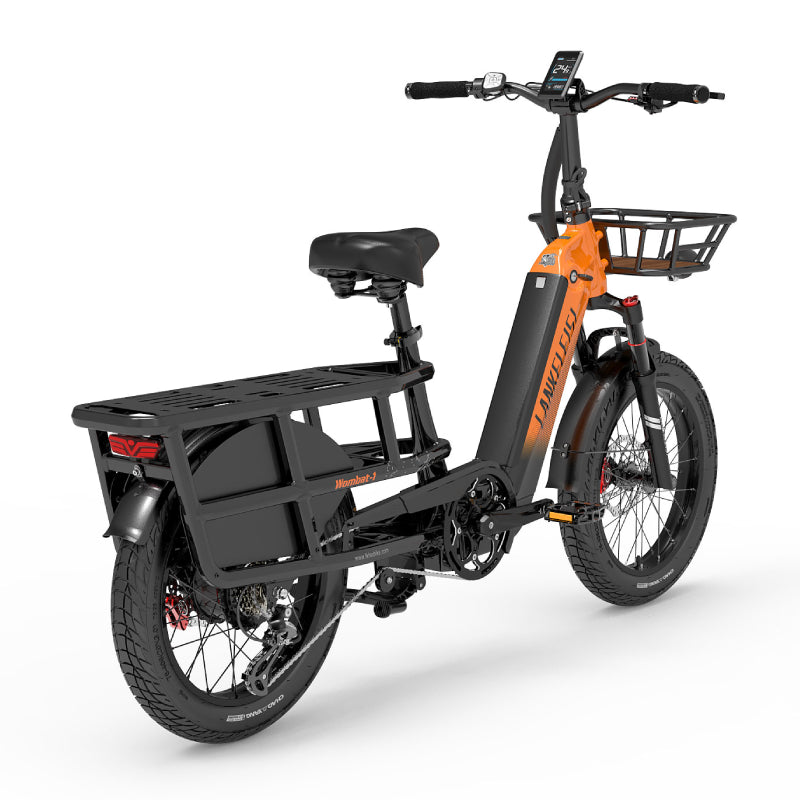

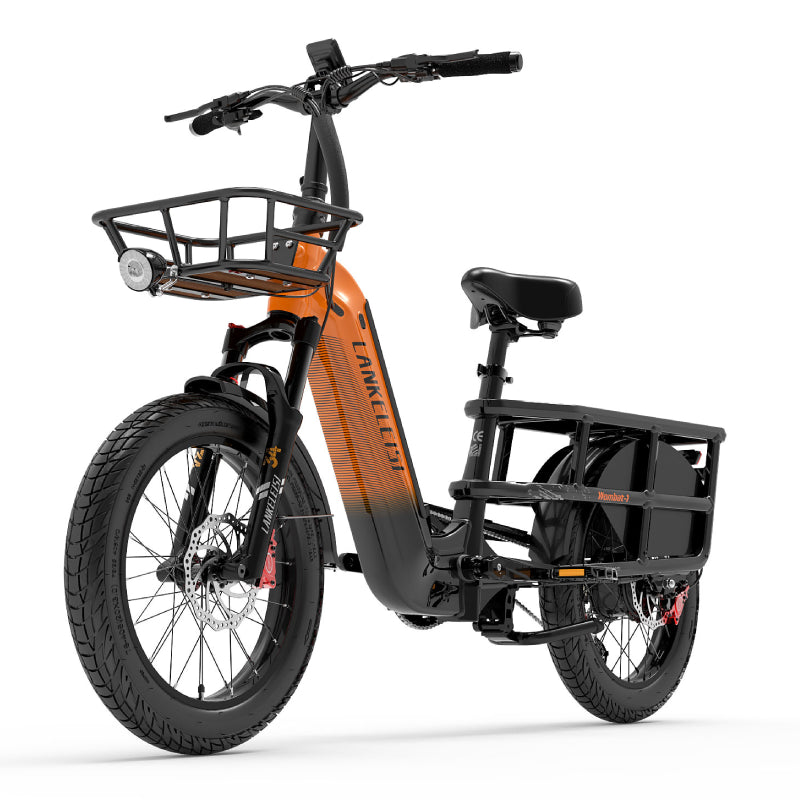

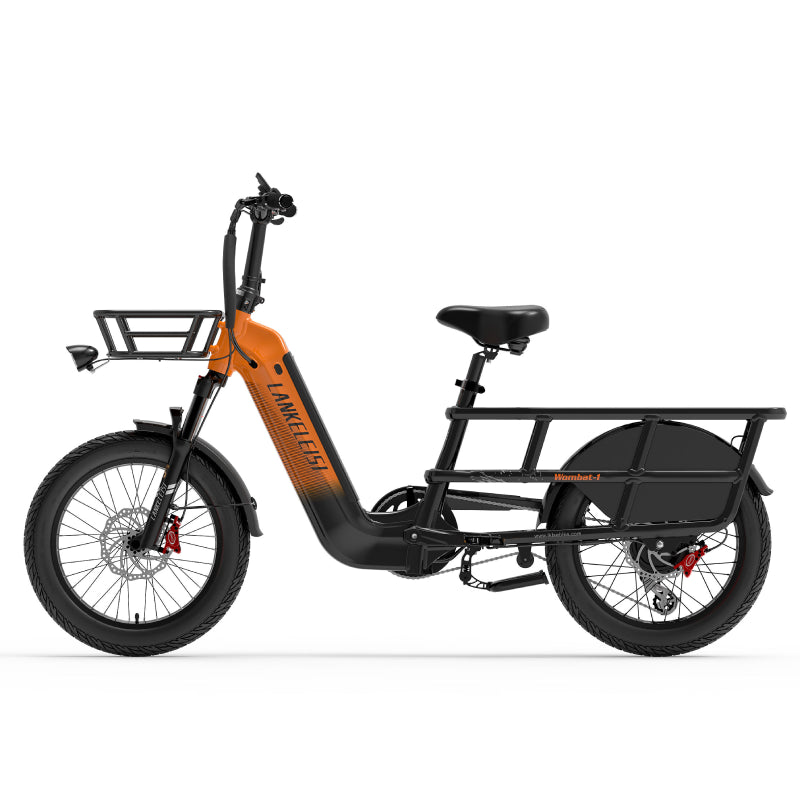

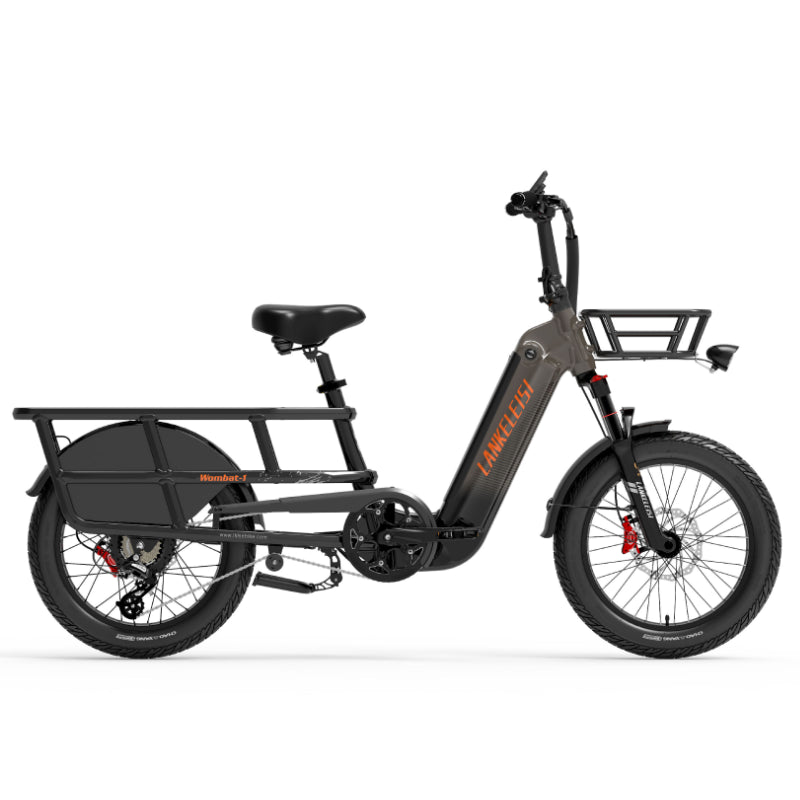

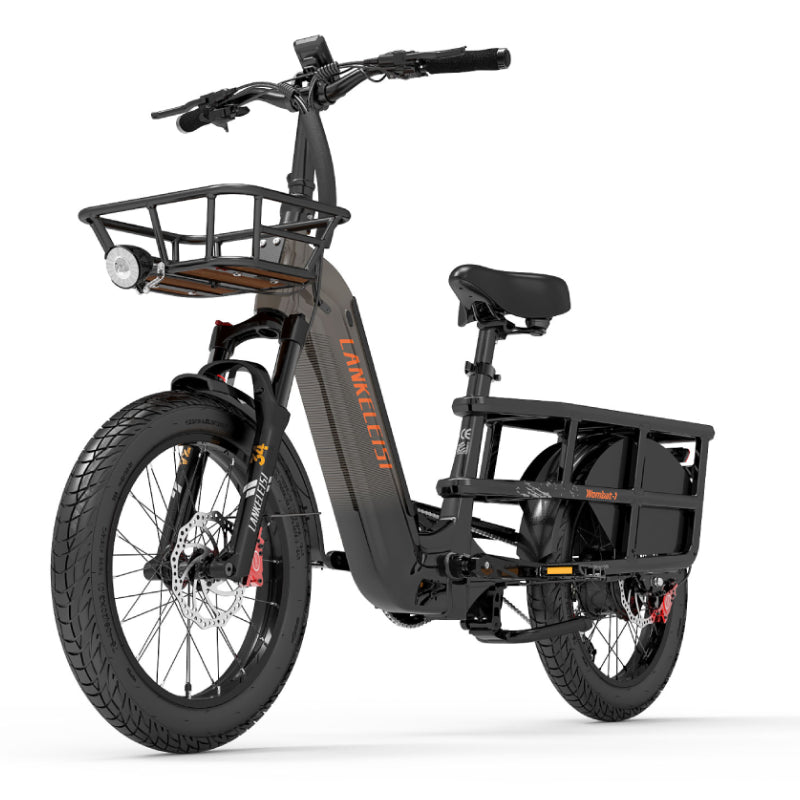

Wombat-1 1000W

CARRY MORE. MOVE WITH PURPOSE.

A powerful step-through cargo platform built for daily errands, equipment transport and longer urban routes. Strong rear-hub assistance, a 960Wh battery, reinforced carrying capacity, wide tires and hydraulic stopping bring utility and confidence together.

POWER FOR LOADS, HILLS AND DAILY DISTANCE

The 48V 1000W brushless rear hub system produces up to 75 Nm of listed torque. It is designed to provide responsive acceleration and useful support when carrying cargo or climbing, with a manufacturer-listed grade capability of up to 35 degrees under suitable conditions.

The manufacturer reports a tested maximum speed of 46 km/h, approximately 28.6 mph. Actual output and speed vary with total load, terrain, wind, battery charge, temperature, tire pressure and local speed restrictions.

1000W POWER

Strong rear-wheel assistance supports starts, steady urban travel and load-carrying routes.

UP TO 75 NM

Useful listed torque helps the platform accelerate and maintain support under changing demands.

THUMB THROTTLE

A handlebar-mounted thumb control provides direct, easy-to-modulate electric assistance.

960WH TO KEEP THE DAY MOVING

The 48V 20Ah lithium-ion battery uses 21700-format cells and provides 960Wh of nominal energy. Under the manufacturer’s stated test conditions, claimed range is 60–70 km in motor-driven operation and 120–150 km with pedal assistance.

High-capacity 960Wh battery using 21700-format lithium-ion cells.

Claimed motor-driven range, converted from the listed 60–70 km.

Claimed assisted range, converted from the listed 120–150 km.

LOAD THE DAY YOUR WAY

The rear rack is rated for up to 90 kg, approximately 190 lb, while the entire platform has a listed maximum supported load of 200 kg, approximately 440 lb. A front storage basket is included and is separately listed for up to 20 kg, approximately 44 lb.

Load ratings are maximum structural claims, not recommended everyday targets. Total supported load includes the rider, cargo, accessories and anything attached. Weight must be secured, centered and distributed without interfering with steering, wheels, lighting or stopping controls.

Maximum combined supported load for rider, cargo and installed accessories.

Maximum listed load for the rear rack, remaining within the total platform limit.

Maximum listed load for the included front storage basket.

STEP THROUGH AND SET OFF

The lowered central frame area reduces the height required to mount and dismount, especially useful when rear cargo is already loaded. The main structure uses 6061 aluminum alloy, supported by an aluminum handlebar and aluminum wheel rims.

The recommended rider-height range is 160–190 cm, approximately 5 ft 3 in to 6 ft 3 in. Correct fit depends on body proportions, saddle adjustment, cargo position and the rider’s ability to control the platform safely at low speed and while stopped.

STEP-THROUGH ACCESS

A lowered frame opening makes mounting and dismounting easier, including when carrying cargo.

6061 ALUMINUM ALLOY

Aluminum construction creates a strong, corrosion-resistant foundation for daily utility.

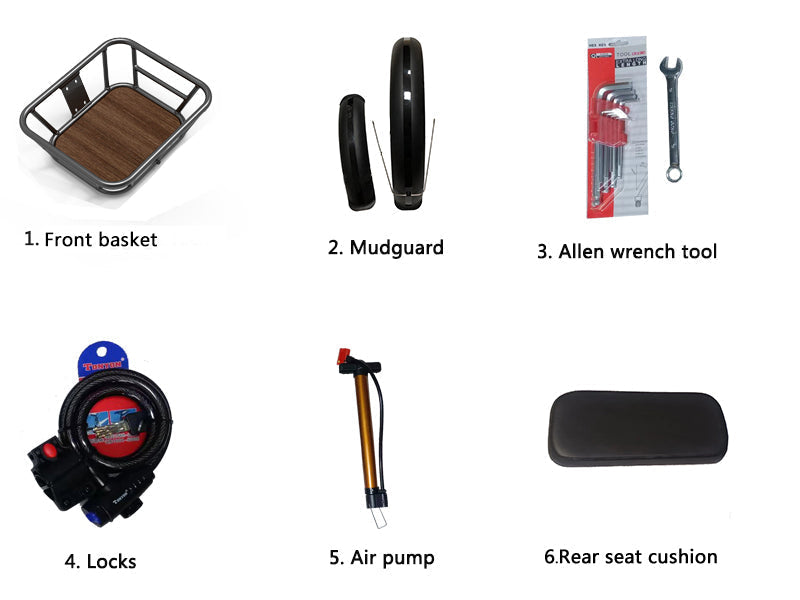

INCLUDED FRONT BASKET

Front storage provides convenient access to smaller bags and everyday essentials.

EXTENDED REAR RACK

A high-capacity rear platform supports compatible cargo accessories and secured loads.

HYDRAULIC STOPPING WITH POWER CUTOFF

Hydraulic disc stopping uses 180 mm rotors and an integrated drive power-cutoff feature. The system is designed for strong, progressive lever response, an important advantage when speed and total operating weight increase.

Stopping distance still changes with cargo weight, speed, surface grip, weather, tire condition, pad wear and hydraulic adjustment. Allow extra distance when loaded and never operate if stopping performance feels weak, uneven or abnormal.

180 MM HYDRAULIC DISCS

Large hydraulic disc systems provide controlled stopping response for everyday and loaded travel.

DRIVE POWER CUTOFF

Electric output is interrupted during braking to support coordinated control.

48V LED HEADLIGHT

A bright forward light supports visibility in dim streets and low-light conditions.

48V REAR LIGHT

Rear illumination helps approaching road users identify the rider and loaded platform.

FAT TIRES MEET LOCKABLE SUSPENSION

Wide 20 × 3-inch tires provide a broad contact area for stability and traction across pavement, gravel and uneven streets. A lockable oil-spring front fork with 100 mm of travel helps reduce impact harshness when the surface becomes rough.

Open the suspension for bump absorption or use the lockout for a firmer response on smooth ground. Tire width and suspension improve control, but do not make every surface safe; speed must match grip, visibility, cargo stability and rider experience.

20 × 3-INCH FAT TIRES

Wide tires support a stable footprint and useful traction across changing urban surfaces.

100 MM FORK TRAVEL

Oil-spring front suspension helps soften repeated bumps and rough road transitions.

LOCKABLE RESPONSE

A lockout setting provides a firmer front end when suspension movement is not needed.

ERGONOMIC SADDLE

A comfort-focused saddle supports longer daily routes and relaxed travel.

POWER THAT RESPONDS TO PEDAL PRESSURE

A torque sensor measures rider input and adjusts electric support in response, helping acceleration feel smoother when starting with a load. The color LCD displays the selected assistance level alongside battery, speed and trip information.

Seven mechanical speeds and a 52-tooth aluminum crankset allow pedaling effort to be adapted for starts, steady cruising and inclines. The thumb throttle provides a separate method of controlling electric output where permitted.

TORQUE SENSOR

Assistance responds to applied pedaling force for a connected, proportional feel.

SEVEN SPEEDS

Multiple mechanical ratios help match rider effort to load, speed and gradient.

COLOR LCD

View current, maximum and average speed, battery status, mileage and assistance information.

IP54 RATING

Listed limited protection against dust and water splashes during ordinary daily use.

UTILITY AT A GLANCE

SECURE THE LOAD. INSPECT THE SYSTEM. RIDE RESPONSIBLY.

Complete all required assembly according to the supplied manual. Before every trip, inspect tire condition and pressure, wheel security, steering alignment, suspension, saddle security, hydraulic stopping operation, battery installation, lighting, drivetrain function, rack and basket mounting, cargo restraints and every safety-critical fastener. Stop immediately if any component is loose, damaged or operating incorrectly.

Never exceed the total-load limit or either individual storage limit. A rack capacity does not by itself authorize passenger transport; use only compatible equipment and follow all local rules. Use the compatible charger in a dry, ventilated area. Wear appropriate protective equipment and allow extra stopping distance when loaded. Speed, distance and climbing figures are manufacturer claims and vary with operating conditions.
