01 / THE DETAILS
20 × 4.0-inch tires
Wide front and rear tires create a larger contact area for added stability and traction across pavement, gravel, packed paths, and other suitable surfaces.

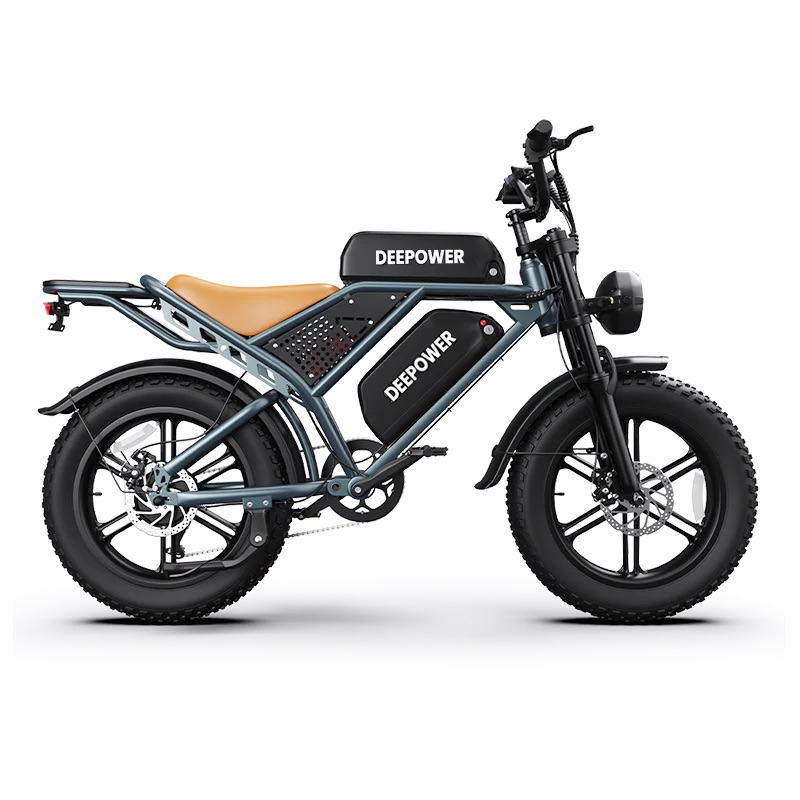

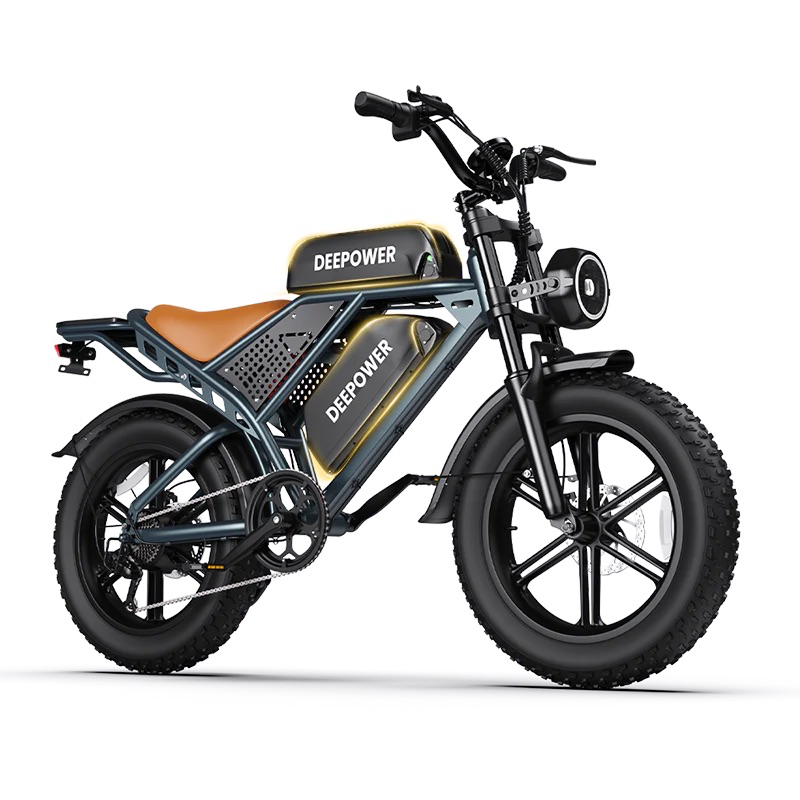

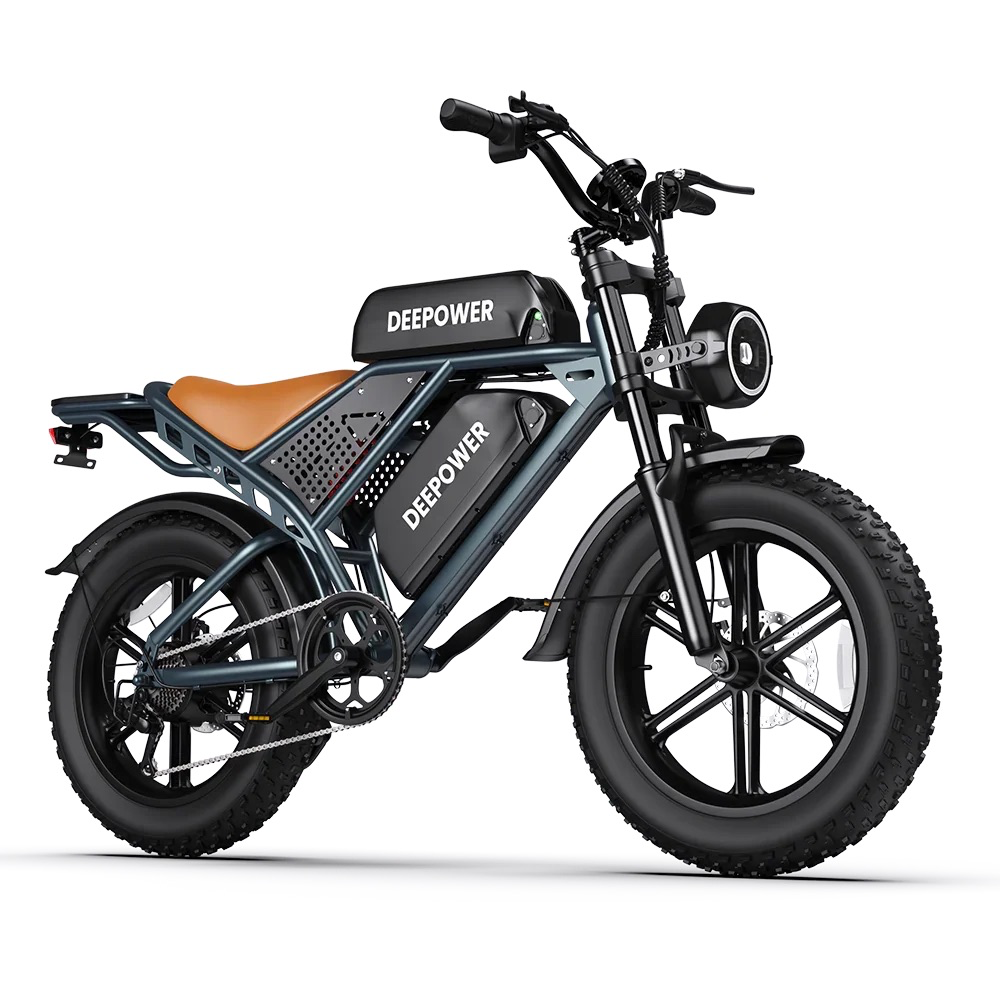

DEEPP QS7
DEEPP QS7
Regular price
$1,390.00
Regular price
Sale price
$1,390.00
Quantity
Couldn't load pickup availability
Shipping & delivery
Review our shipping policy and the delivery options shown at checkout.
Returns & refunds
Read the refund policy before ordering. Contact us before arranging a return.
Questions before ordering?
Email support@abovecycling.us or call (305) 989-9127.
A CLOSER LOOK
THE DETAILS MAKE THE RIDE.
GET TO KNOW YOUR RIDE
THE COMPLETE PICTURE.
QS7 power for bigger plans
A high-output 48V platform built for longer routes, changing surfaces, and heavier everyday demands. Three battery configurations let you choose between practical capacity and maximum distance, while full suspension, wide tires, mechanical disc braking, and a seven-speed drivetrain support confident control.
Three battery configurations
All active options are listed at 48V. Select capacity according to typical distance, assistance level, terrain, load, weather, and charging access.
48V 20Ah
The lowest-capacity option for customers whose regular routes do not require the added size and capacity of the extended configurations.
48V 35Ah
A higher-capacity single option intended to provide more distance between charges than the standard configuration under comparable conditions.

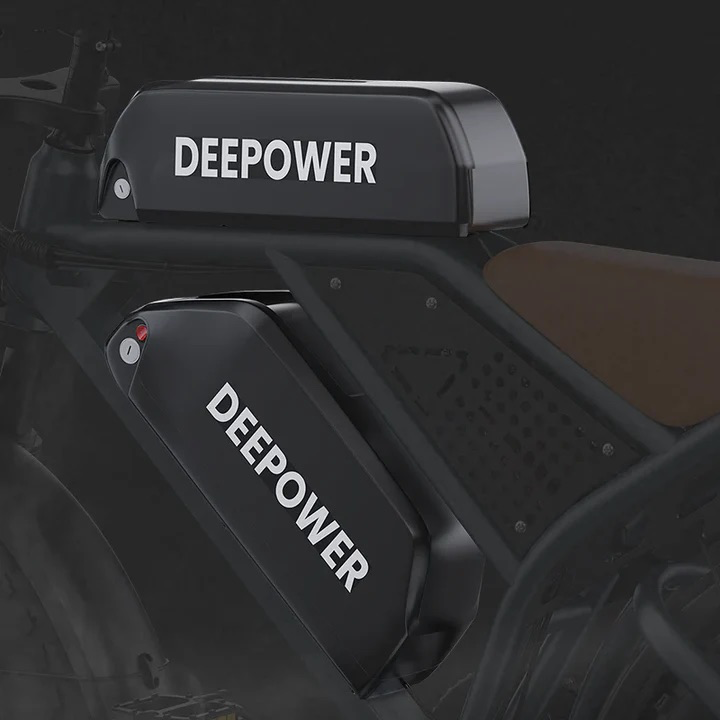

48V 60Ah
The highest-capacity dual configuration and the option associated with the published maximum range of up to 150 miles under favorable conditions.
Prepared for changing terrain
Key equipment is arranged around traction, impact control, visibility, braking, and flexible speed selection.

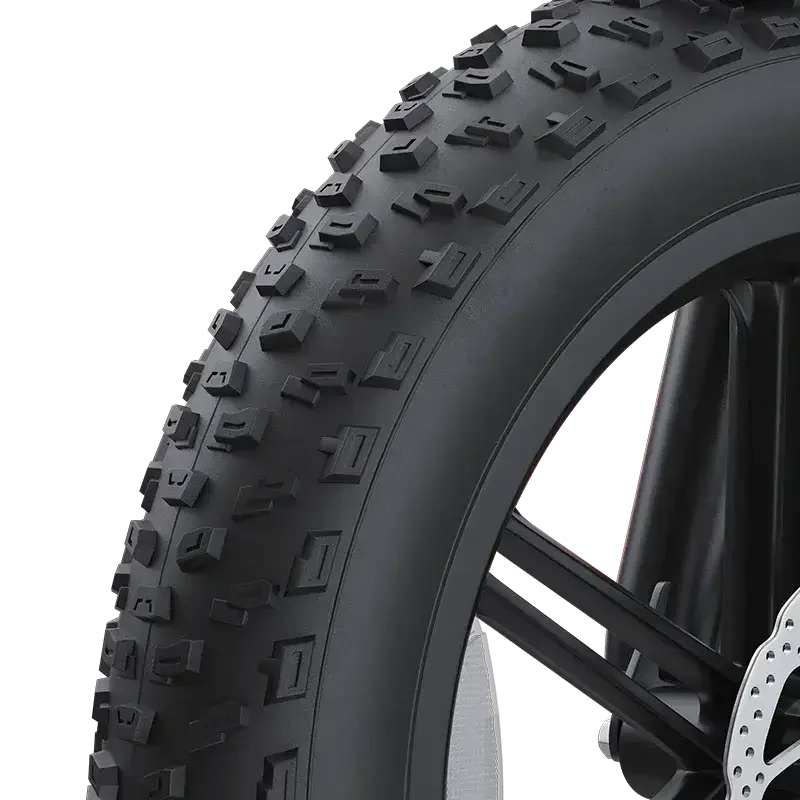

20 × 4.0-inch tires
Wide front and rear tires create a larger contact area for added stability and traction across pavement, gravel, packed paths, and other suitable surfaces.
Full suspension

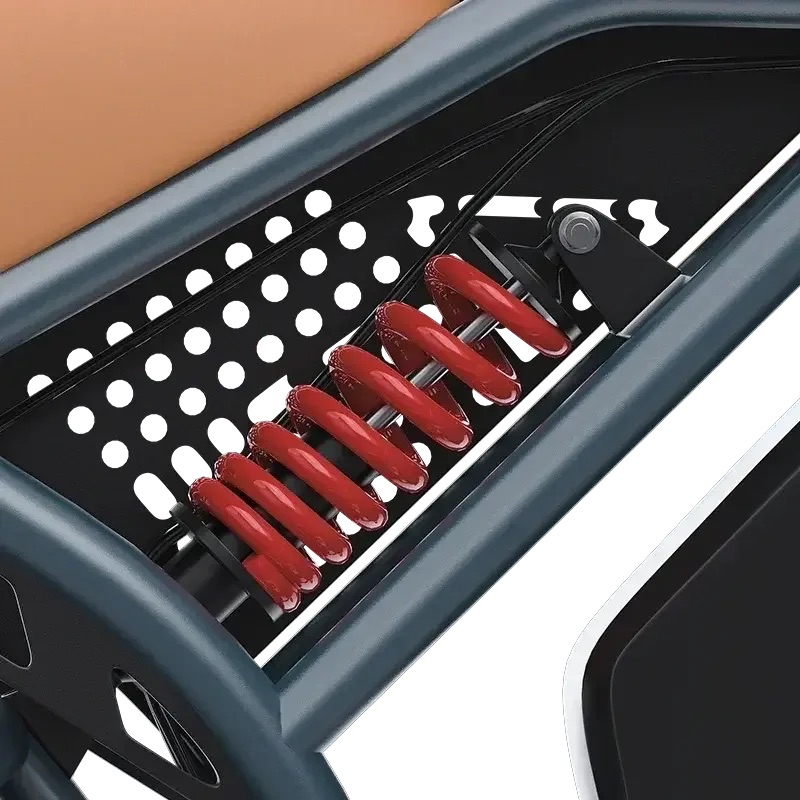

An inverted aluminum front fork works with a central rear nitrogen shock to reduce the effect of bumps and uneven ground.

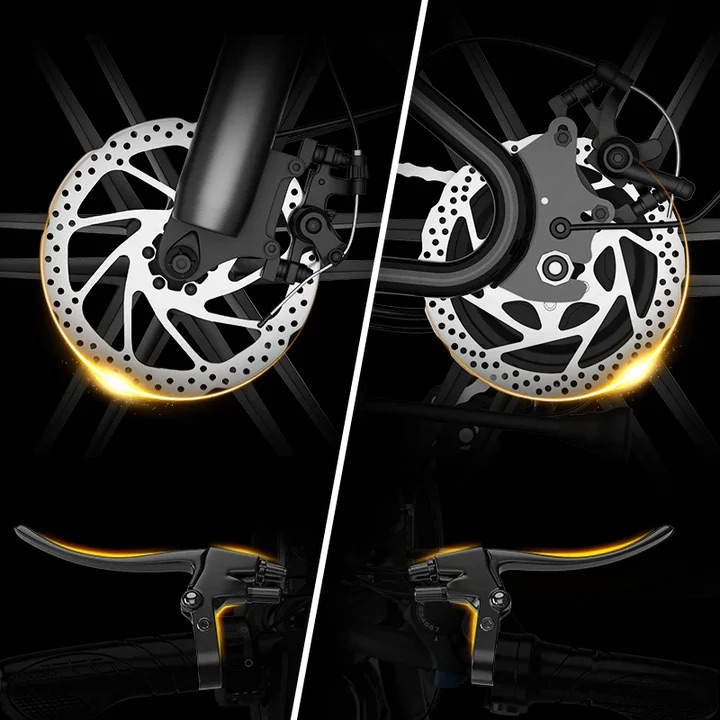

160 mm disc brakes
Front and rear mechanical disc braking provides familiar cable-operated serviceability and controlled deceleration when correctly adjusted.
Seven-speed drivetrain
Seven mechanical ratios help the rider adjust cadence and effort for starts, open stretches, and inclines.
Front and rear signals
A round white front light supports forward visibility, while equipped signals at both ends help communicate intended direction.

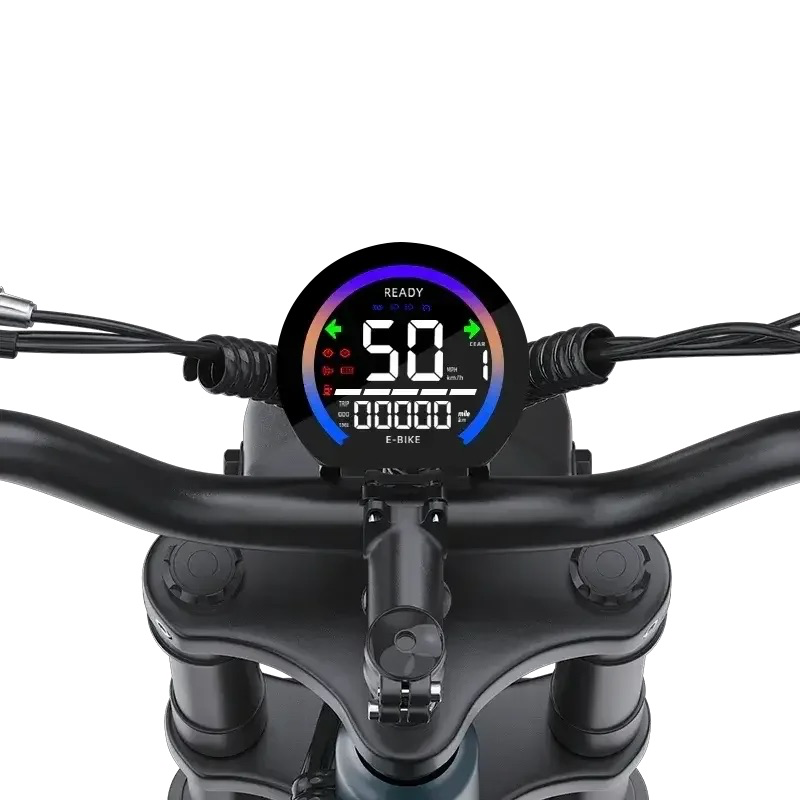

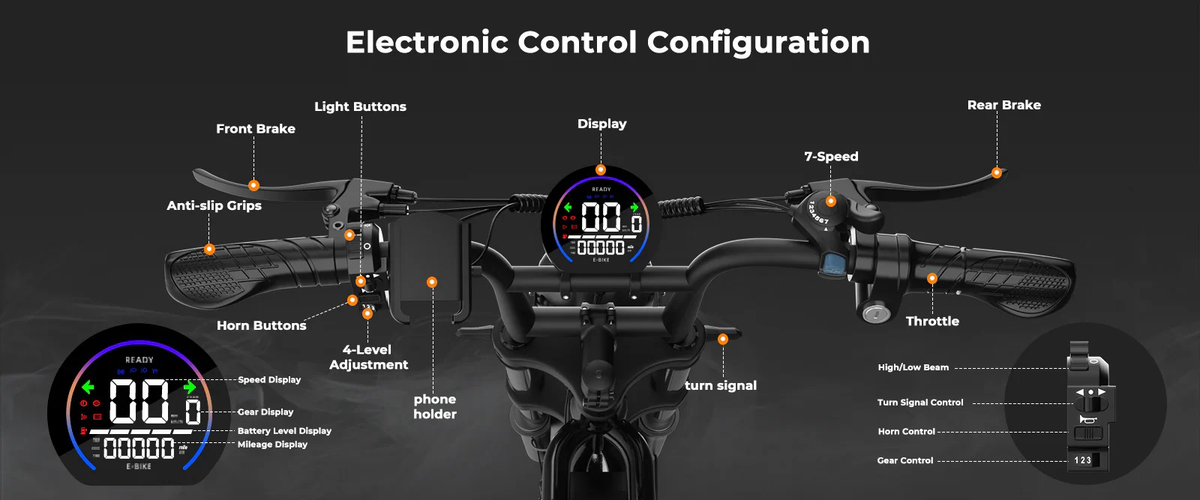

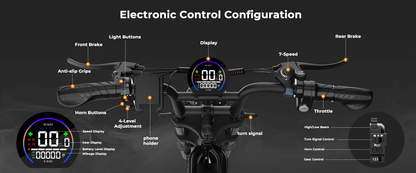

LED information display
The handlebar display keeps essential operating information visible while moving. Exact screen functions can vary by configuration.
Technical specifications
Performance
| Motor | 48V brushless; published output up to 1500W |
|---|---|
| Maximum torque | 90 N·m |
| Maximum speed | Up to 30 mph* |
| Range | Published 50–150 miles, depending on battery selection and conditions* |
| Maximum climbing claim | Up to 30° under suitable conditions* |
| Maximum load | 440 lb total published limit |
| Published motor speed | 4,478 rpm |
| Drive | Chain drive with three-level zero-start setting |
Electrical system
| System voltage | 48V |
|---|---|
| Battery choices | 20Ah standard / 35Ah extended / 60Ah dual power |
| Charger output | Published 2–3A |
| Charger input | 100–220V, 50–60Hz |
| Published charge time | 4–6 hours; confirm for selected capacity |
| Display | LED display |
| Front lighting | White round headlight |
| Signals | Front and rear turn signals |
| Thermal protection | Integrated controller described as shutting off power during overheating |
| Water-resistance rating | IPX5; water-resistant, not waterproof |
Frame, suspension and controls
| Frame material | Carbon steel |
|---|---|
| Front tire | 20 × 4.0 in |
| Rear tire | 20 × 4.0 in |
| Front suspension | Inverted aluminum fork |
| Front-fork dimensions | 40 mm diameter with 150 mm travel |
| Rear suspension | Nitrogen shock absorber |
| Brakes | Mechanical disc system with 160 mm rotors |
| Gearing | Seven speeds |
| Chain specification | 116 links / 420 chain |
Dimensions and fit
| Recommended rider height | 160–195 cm / approximately 5 ft 3 in–6 ft 5 in |
|---|---|
| Handlebar width | 28.35 in / 72 cm |
| Overall height | 42.13 in / 107 cm |
| Minimum seat height | 29.92 in / 76 cm |
| Ground clearance | 14.17 in / 36 cm |
| Wheelbase | 64.96 in / 165 cm |
| Overall length | Not stated in the reference specification |
| Product weight | Not stated in the reference specification |
| Package contents | Confirm the packing list for the selected configuration before ordering |
Setup and ownership basics
The published information describes approximately 90% pre-assembly. Final setup still requires careful inspection and correct adjustment.
Install the remaining parts
The seat, front wheel, and certain accessories are identified as the main installation steps. Follow the supplied manual and use the specified torque values.
Check before use
Verify wheel retention, tire pressure, steering, controls, brake alignment, fasteners, battery security, lights, and signals. Use a qualified technician if any step is unclear.
Use the supplied equipment
Charge in a dry, ventilated area away from heat and flammable materials. Do not use a damaged, wet, swollen, modified, or unusually hot battery or charger.
What customers should know
Quick answers to the points most likely to affect fit, use, charging, and ownership.
Which battery option should I choose?
Choose based on normal distance, terrain, assistance use, load, climate, charging access, and the added size or weight of higher-capacity equipment. The 20Ah option suits shorter routines, 35Ah adds capacity, and 60Ah is the dual configuration associated with the longest published range.
Will I always reach the published maximum range?
No. The 150-mile figure is a best-case claim associated with the largest battery configuration. Real distance changes with battery selection, rider and cargo weight, terrain, hills, wind, temperature, tire pressure, speed, stops, assistance level, and battery condition.
Does IPX5 mean it is waterproof?
No. IPX5 indicates resistance to water jets under specified test conditions; it does not permit submersion, pressure washing, or charging while wet. Follow the manual, protect electrical connections, and allow the system to dry before charging.
Is the published 30 mph available everywhere?
No. Local rules can restrict speed, power, throttle use, equipment, age, licensing, registration, and access to roads or paths. The customer is responsible for confirming and following the laws that apply where the product will be used.
How much assembly is required?
The model information describes approximately 90% pre-assembly, with the seat, front wheel, and minor accessories remaining. Assembly quality directly affects safety, so follow the supplied instructions and arrange professional inspection when needed.
Where can I review purchase policies?
Coverage and claims are governed by the warranty policy . Eligibility for returns is explained in the refund policy , and delivery information appears in the shipping policy .
Range, speed, climbing ability, charging time, and stopping distance vary with configuration, total load, terrain, weather, temperature, tire pressure, maintenance, traffic, assistance setting, and operating style. Confirm the selected configuration before ordering, follow the supplied manual, wear appropriate protective equipment, maintain the product regularly, and obey all local requirements.
Check the selected configuration.Specifications, included items and fit can vary by model version and selected option. Performance figures are not guaranteed results. Review the product option and documentation before ordering; contact Abovecycling if a detail is unclear.
